110kV Polymer Housed Surge Arrester with Leave Device for Substation

MOQ:	10
Precio:	1

Detail Information

Certificación:

ISO9001

Modelo No.:

YH10CX5-110

Tipo de instalación:

Arresto paralelo

Material:

Zno

Clase de línea:

Voltaje:

126

Forma:

Cuboides

Capacidad de ruptura:

Los interruptores de circuito de alta tensión

Medios de extinción de arco:

Aire

Capacidad de flujo:

100KA

Nivel de CTI:

Distancia de fuga:

III Nivel Fuerte contaminación

Voltaje de sistema nominal:

110

Voltaje nominal:

100

Voltagem de funcionamiento continua:

Impulso de alta corriente:

4/10 μ s

Resaltar:

Product Description

110kV Polymer Housed Surge Arrester with Leave Device

Product Specifications

Attribute	Value
Model NO.	YH10CX5-110
Installation	Parallel Arrester
Application	Substation
Size	Medium
Operation Voltage	High Voltage
Material	ZnO
Brand	Yongde
Breaking Capacity	High Voltage Circuit Breakers
Voltage	126
Specification	IEC60099-4
Production Capacity	5000PCS/Year

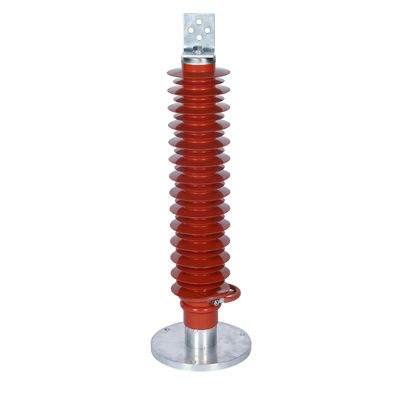

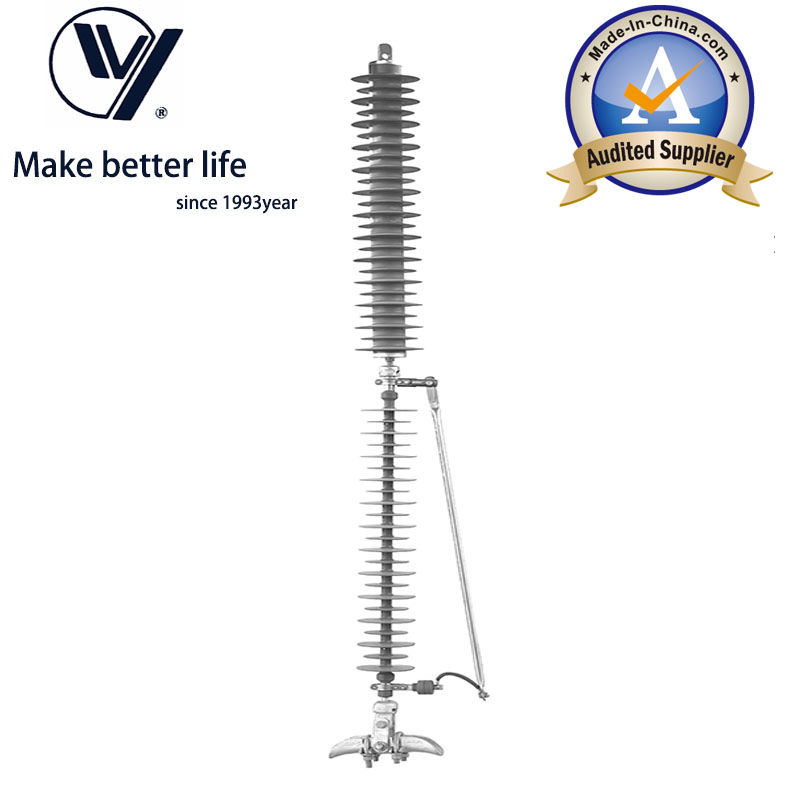

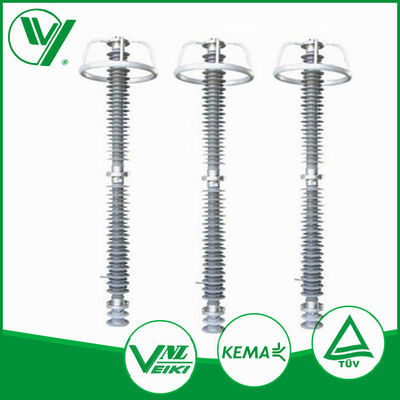

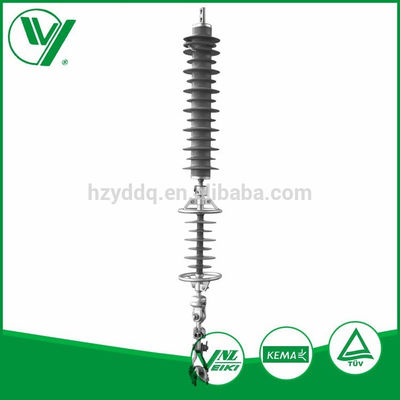

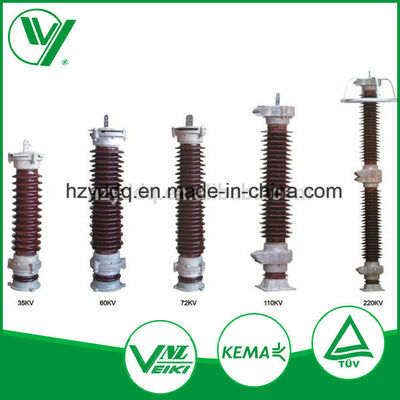

Product Images

Key Features

Smooth volt-second characteristic curve for optimal performance
Excellent insulation coordination and protective characteristics
High electrical frequency withstand voltage in discharging gap
Tube-like structure with side injection hole for better performance
Overall injection molding polymer housing with no internal air gaps
Independent encapsulation of core columns for superior air-proof performance
Side injection hole with pressure release function
Core component zinc oxide varistor with 100kA flow capacity
Excellent anti-fatigue behavior with Polymer Housed products
CTI level of six with creepage distance meeting III level heavy pollution requirements

Technical Specifications
