132kV Porcelain Housing Lightning Arrester Y10W5-132 for Substations

MOQ:	3
Precio:	1

Detail Information

Product Description

Detail Information

Certificación:

ISO9001

Voltaje nominal:

132KV

Altura:

1970m m

Distancia de fuga:

4250m m

Voltagem máxima del sistema:

145/161kV

Nivel de descarga de línea:

Dos tercios y cuatro

Impulso de corriente de larga duración:

600/800/1000A

4/10 μs de corriente:

100KA

Impulso de relámpago de soporte:

650kV

Voltaje de frecuencia de potencia resistente:

275 KV

VOCM:

106kv

Corriente nominal:

10ka

Voltaje residual (5ka):

396kv

8/20 μs de voltaje residual:

334KV

Cambio de voltaje residual de impulso:

263kV

Voltaje de referencia de 1 mA de CC:

192kV

Resaltar:

132kV porcelain lightning arrester

substation lightning arrester Y10W5-132

high voltage porcelain arrester

Product Description

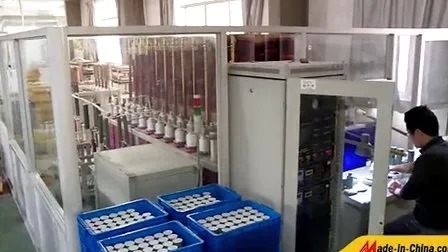

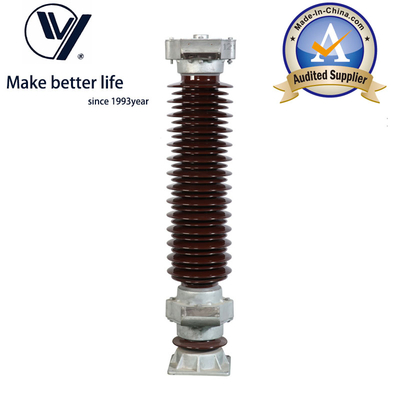

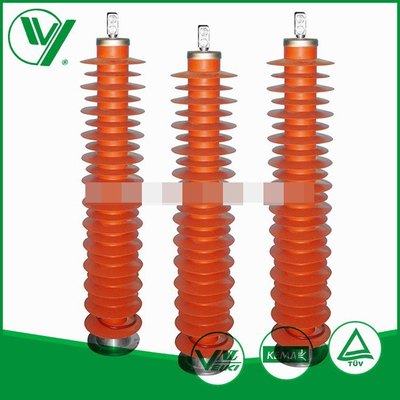

132kV Porcelain Housing Surge Arrester - Model Y10W5-132

Product Specifications

Attribute	Value
Model NO.	Y10W5-132
Installation	Parallel Arrester
Application	Substation
Size	Large
Operation Voltage	High Voltage
Material	ZnO
Creepage Distance	4250mm
Housing	Porcelain
Line Discharge Class	3
Specification	IEC 60099-4

Key Features

Superior electrical performance and reliability
Lightweight design for easier installation
Explosion and shatter proof construction
Excellent performance in polluted environments
Vandalism resistant design
Moisture ingress protection
High mechanical strength
UV radiation insensitive
Excellent resistance to ozone and corona
Superior tracking resistance

Technical Parameters

Rated voltage	132kV
Height	1970mm
Creepage distance	4250mm
Maximum system voltage Um	145/161KV
Line discharge level	2/3/4
Long duration current impulse	600/800/1000A
4/10 μs current impulse	100KA
Lightning impulse withstand	650KV
Power frequency voltage withstand	275KV

Detailed Specifications

Parameter	Value
MCOV (kV)	106
Nominal Current (kA)	10
Residual voltage of steep impulse at 5kA (kV)	396
8/20µS Residual voltage of lightning impulse current (Peak value) at 5kA (kV)	334
Residual voltage of switching impulse current (peak value) at 1kA (kV)	263
1mA D.C reference voltage (kV)	192
2mS long duration impulse current (A)	850
4/10µS High current impulse (kA)	100
